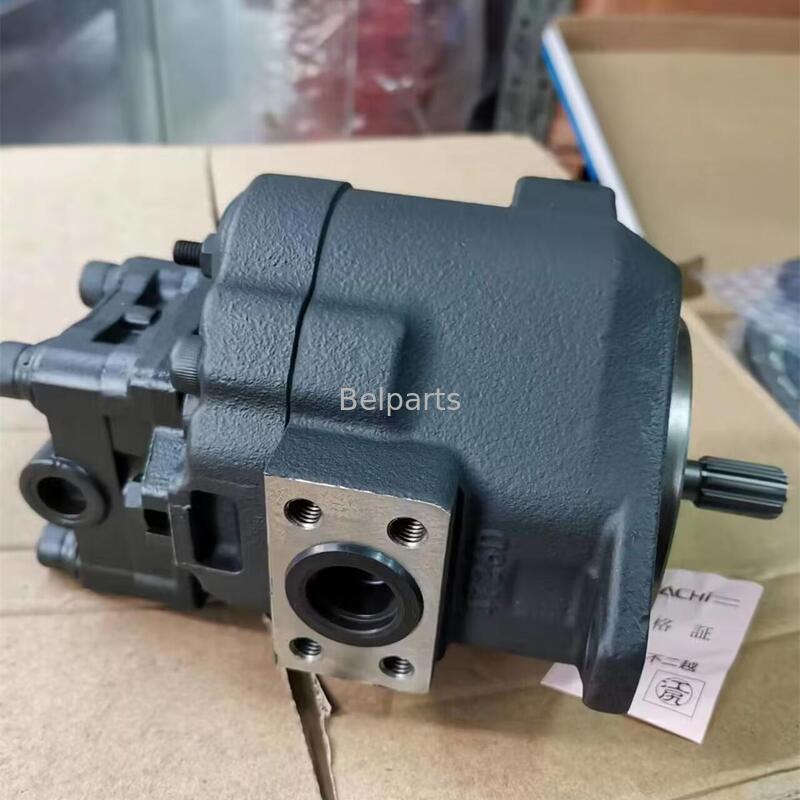

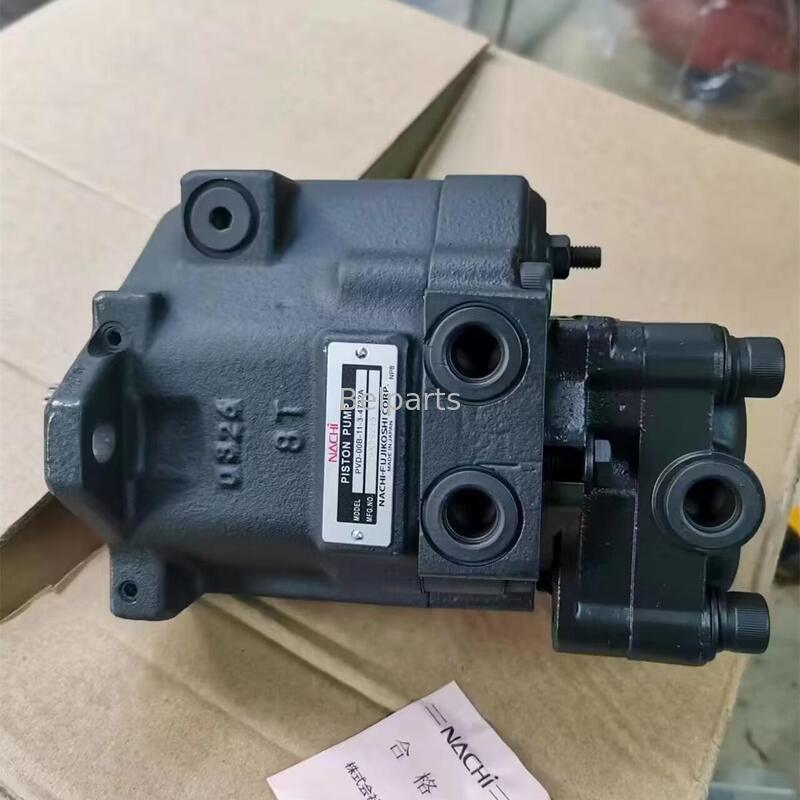

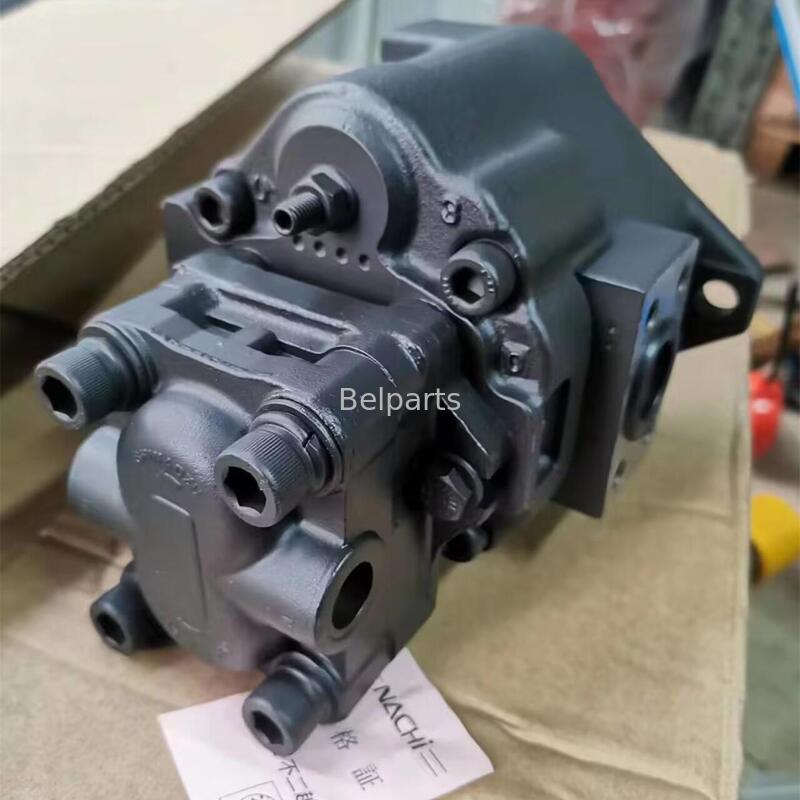

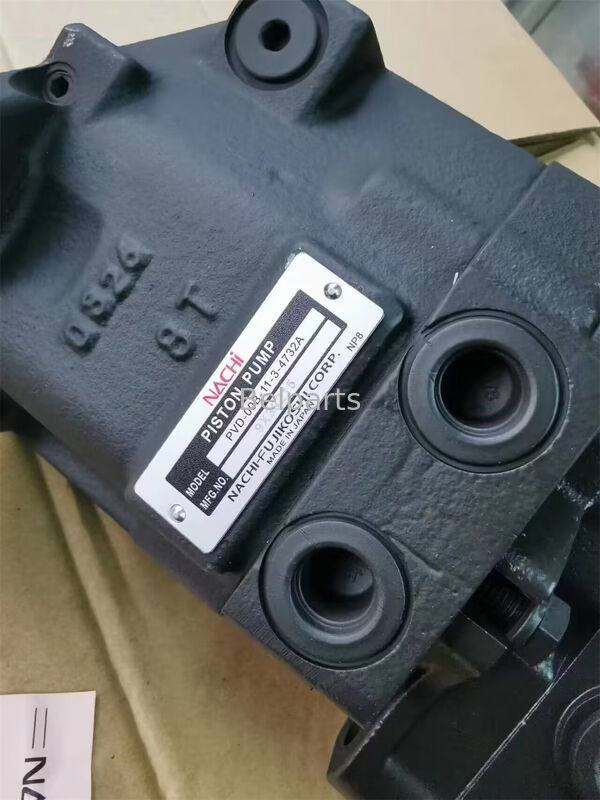

Yanmar VIO10-2A Kobelco SK13SR SK15SR Main Hydraulic Pump For Excavator Spare Parts PE10V00001F1 PU10V00002F1 PVD-00B-11-3-4732A Nachi Piston Pump
Product Specifications
| Application |
Excavator |
| Part name |
Hydraulic Piston pump |
| Model |
Yanmar VIO10-2A Kobelco SK13SR SK15SR |
| Type |
PVD-00B-11-3-4732A Nachi |
| Part munber |
PE10V00001F1 PU10V00002F1 |
| Warranty |
12 months |
| Delivery time |
3-7 Days |
| Shipment |
Express/freight/sea/train |
| Quality |
Original Brand New |
| MOQ |
1 Piece |
| Payment term |
T/T, Trade Assurance, Paypal and etc |
| Category |
Construction Machinery Part |
Pos. Part No Qty Parts name
PE10V00001F1 [1] PUMP,7.4 cc
1. NSS [1] NOT SOLD SEPARAT
2. NSS [1] NOT SOLD SEPARAT
3. NSS [1] NOT SOLD SEPARAT
4. PA:JV00001S004 [1] SHAFT
5. PA:JV00001S004 [1] BARREL
6. PA:JV00001S005 [1] PLATE
7. PA:JV00001S006 [1] PISTON
8. PA:JV00001S007 [1] TRACK SHOE
9. PA:JV00001S008 [1] HOLDER
10. PA:JV00001S009 [1] HOLDER
11. PA:JV00001S010 [1] PLATE
12. PV1VV00001S012 [2] NEEDLE
13. PV1VV00001S012 [2] PIN
14. PV1VV00001S014 [1] PACKING
15. PV1VV00001S014 [1] SPRING
16. PV1VV00001S015 [1] SPRING
17. PA:JV00001S016 [1] HOLDER
18. PA:JV00001S018 [1] SPRING
19. PA:JV00001S019 [1] PIN
20. PA:JV00001S020 [1] RETAINER
21. PV1VV00001S023 [1] PIN
22. PV1VV00001S023 [1] BALL BEARING,20mm OD,12mm W
23. K21P0908 [1] BEARING
24. PA:JV00001S021 [1] GASKET
25. PA:JV00001S023 [1] WASHER
26. PA:JV00001S024 [1] SNAP RING
27. PV1VV00001S025 [1] WASHER
28. Z21P1100 [1] O-RING
29. 224/CV16050 [1] SCREW,Hex Socket Head,∅5x20mm
30. PA:JV00001S021 [1] PLUG
31. PA:JV00001S022 [1] PLUG
32. Z21P1-8808 [1] O-RING
33. PV1VV00001S026 [1] LATCH PIN
34. PV1VV00001S026 [1] SCREW
35. PV1VV00001S026 [1] NUT
36. PV1VV00001S026 [1] WASHER
37. PA:JV00001S027 [1] HYDRAULIC PUMP
38. PA:JV00001S028 [1] FLEXIBLE JOINT
39. PL1VV00001S029 [1] BALL
40. PL1VV00001S030 [1] BOLT (STEP)
41. NSS [1] NOT SOLD SEPARAT
42. PA:JV00001S031 [1] WASHER
43. PA:JV00001S032 [1] O-RING
44. Z21W3821R19 [1] GASKET
-- PA:JV00001S033 [1] REPAIR KIT
-- PA:JV00001S034 [1] REPAIR KIT
-- PA:JV00001S035 [1] REPAIR KIT
More Branded Accessories are Available
Why Choose Us?
- Quality Assurance
- Fine Workmanship
- Price Advantage
- Stable Supply
Process Features
- Standard production management
- Advanced testing equipment
- Heat Treatment Technology
- Fitting of cylinder block and valve plate
About Factory
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
FAQ
If I only know the excavator model, but can not offer parts No., what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
What is the warranty of the parts after I purchased hydraulic axial piston pump & motor spare parts?
The warranty is 6/12 Months based on the item details.
How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), Alibaba trade assurance.
When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
How can I do if there is something wrong with the items?
First of all, I have confidence in the quality of our products, if you really found something wrong, pls provide pictures for us and we will check. After it is confirmed, pls return to us, we will offer the correct item.
What is your main products?
We are specialized in the excavator spare parts, such as travel motor gearbox/ass'y/parts, swing gearbox/ass'y/motor/parts, hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
