สถานที่กำเนิด:
ผลิตในประเทศจีน
ชื่อแบรนด์:
Belparts
หมายเลขรุ่น:

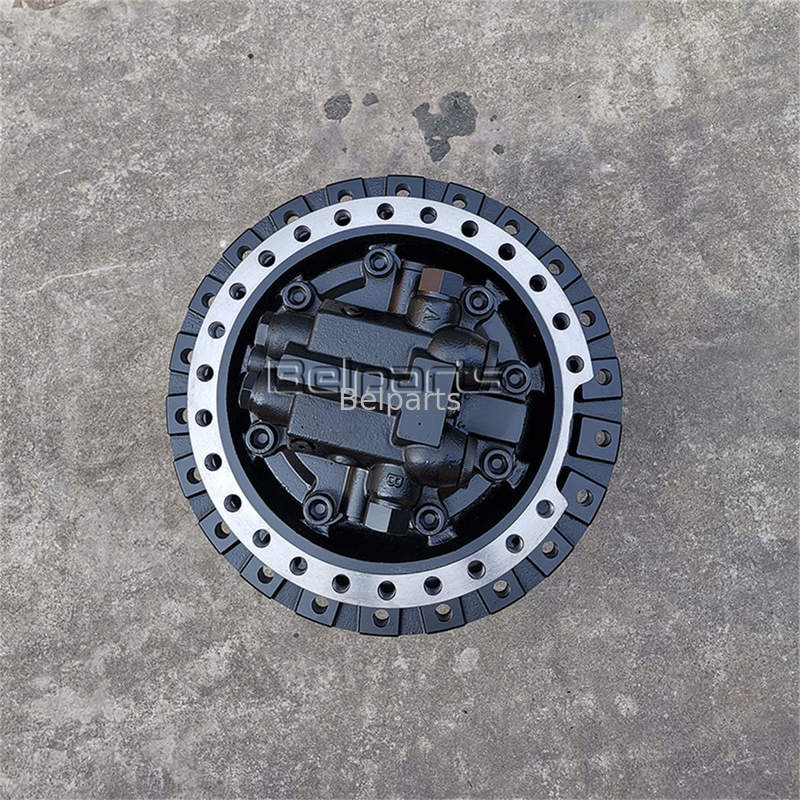

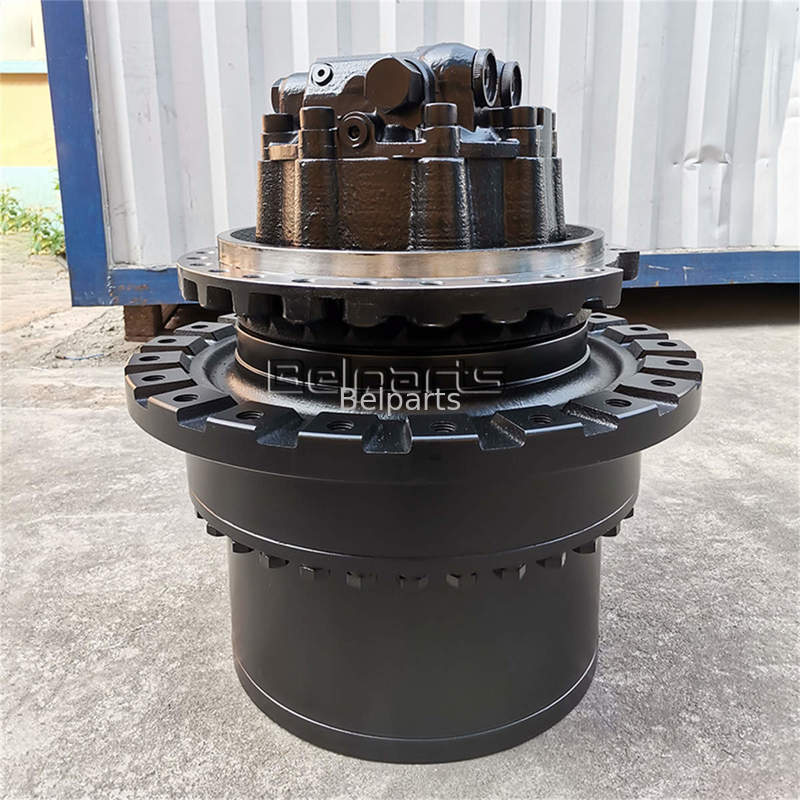

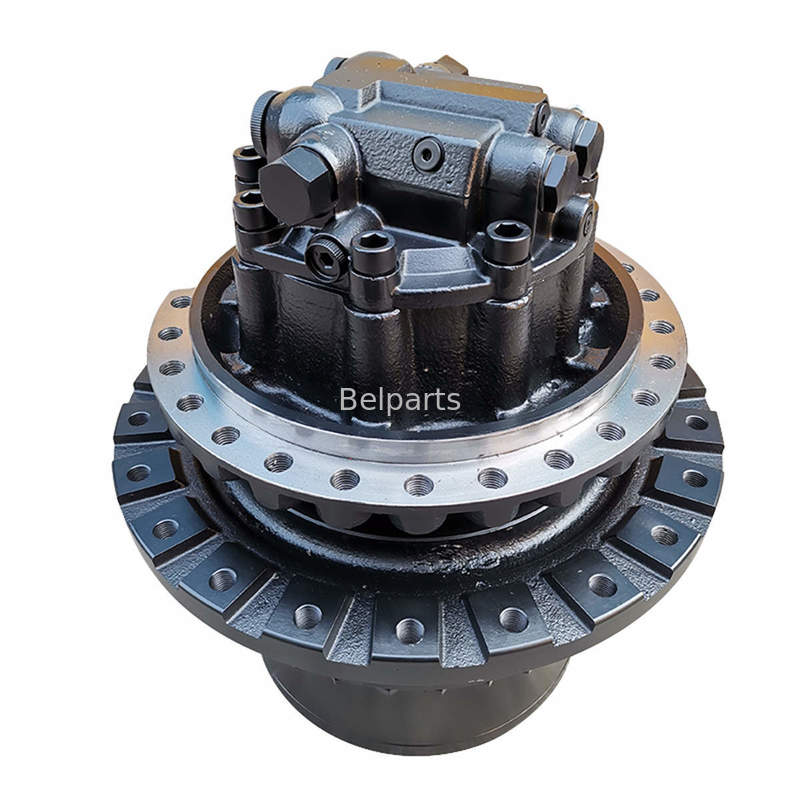

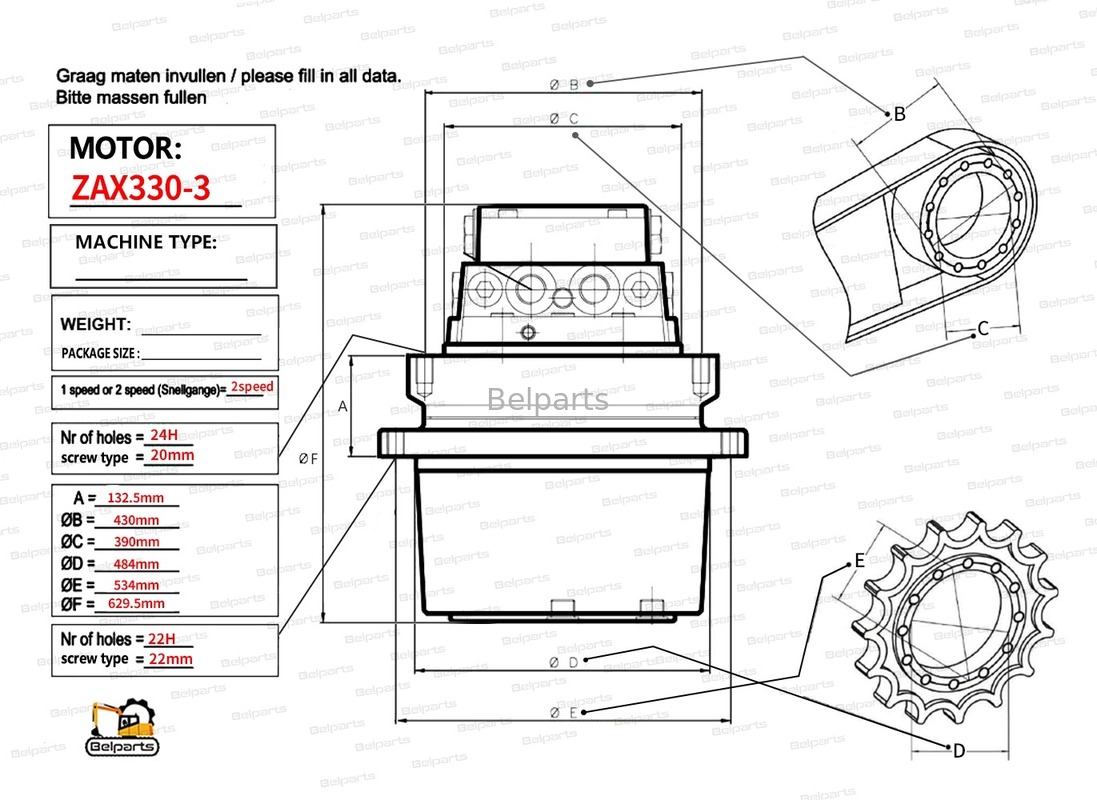

ZX330-3 Final Drive Assy
| Model | ZX330-3 |
| Part Name | Excavator Travel Motor |
| Part Number | 9190296 9195488 |
| Place of Origin | China/ Other Country |
| Condition | OEM/ Genuine/Used |
| Warranty | 12 months |
| Standard or Nonstandard | Standard |
| Payment Term | L/C, T/T, Trade Assurance |
| Delivery Time | 1-3 days (depend on order) |
| Means of Transport | By Sea, Air or DHL |
| Guarantee | We will check and send detailed pictures to buyers for confirmation |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9190296 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | ||
| (9195488) | MOTOR; OIL (FOR TRANSPORTATION) | 1 | ||
| 02 | 1019564 | . CASING; MOTOR | 1 | |
| 03 | 2040523 | . DISC; DRIVING | 1 | |
| 06 | 4199108 | . BRG.; ROL. | 1 | |
| 07 | 4199072 | . BRG.; ROL. | 1 | |
| 09 | 4191665 | . NUT; BRG. | 1 | |
| 10 | 4389598 | . SPACER | 1 | |
| 11 | 4191666 | . SEAL; OIL | 1 | |
| 12 | 4038529 | . RING; RETAINING | 1 | |
| 13 | 2040520 | . ROTOR | 1 | |
| 16 | 8068583 | . PISTON | 7 | |
| 18 | 3078298 | . SHAFT; CENTER | 1 | |
| 20 | 4194362 | . SPRING; COMPRES. | 1 | |
| 21 | 4198956 | . PIN | 1 | |
| 24 | 3036457 | . PLATE; FRICTION | 4 | |
| 25 | 3036456 | . PLATE | 5 | |
| 26 | 4193996 | . SPACER | 1 | |
| 27 | 3078190 | . PISTON | 1 | |
| 29 | 4252401 | . D-RING | 1 | |
| 30 | 4269474 | . D-RING | 1 | |
| 31 | 3054505 | . SPRING; DISC | 1 | |
| 33 | 4269473 | . O-RING | 1 | |
| 34 | 4506415 | . O-RING | 1 | |
| 35 | 9157762 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 | |
| 35 | (9158391) | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 | |
| 38 | M341850 | . BOLT; SOCKET | 4 | |
| 40 | 2035236 | . PLATE | 1 | |
| 42 | 4364104 | . PIN; KNOCK | 2 | |
| 44 | 2040522 | . VALVE | 1 | |
| 46 | 4234628 | . BUSHING | 1 | |
| 49 | 4255238 | . PLUG | 2 | |
| 50 | 2040803 | . LINK | 1 | |
| 51 | 4262561 | . BOLT; REAMER | 1 | |
| 52 | 9157588 | . PISTON; SERVO | 1 | |
| 55 | 4260308 | . RING; PISTON | 2 | |
| 57 | 4265579 | . O-RING | 1 | |
| 61 | 9134112 | . PLUG | 1 | |
| 61A | 4506418 | .. O-RING | 1 | |
| 63 | 9134109 | . PLUG | 1 | |
| 63A | 4506408 | .. O-RING | 1 | |
| 64 | 4438768 | . COVER | 1 | |
| 65 | M341225 | . BOLT; SOCKET | 4 |
