สถานที่กำเนิด:
ผลิตในประเทศจีน
ชื่อแบรนด์:
Belparts
หมายเลขรุ่น:
R210LC-9
| Application | Excavator |
|---|---|

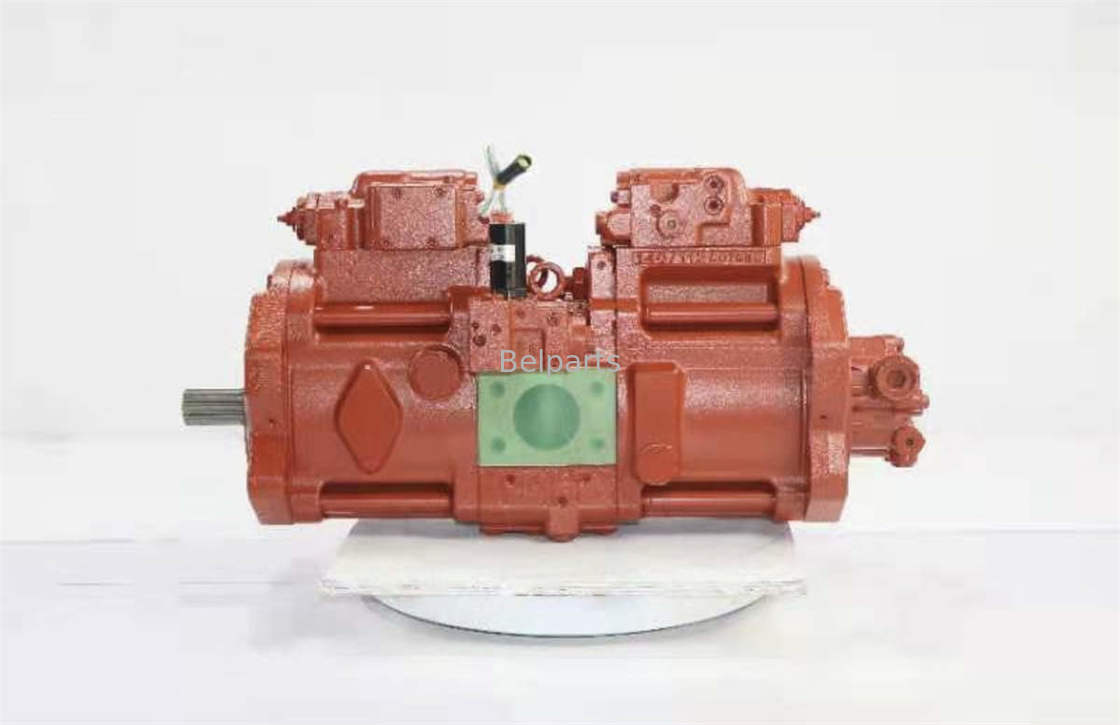

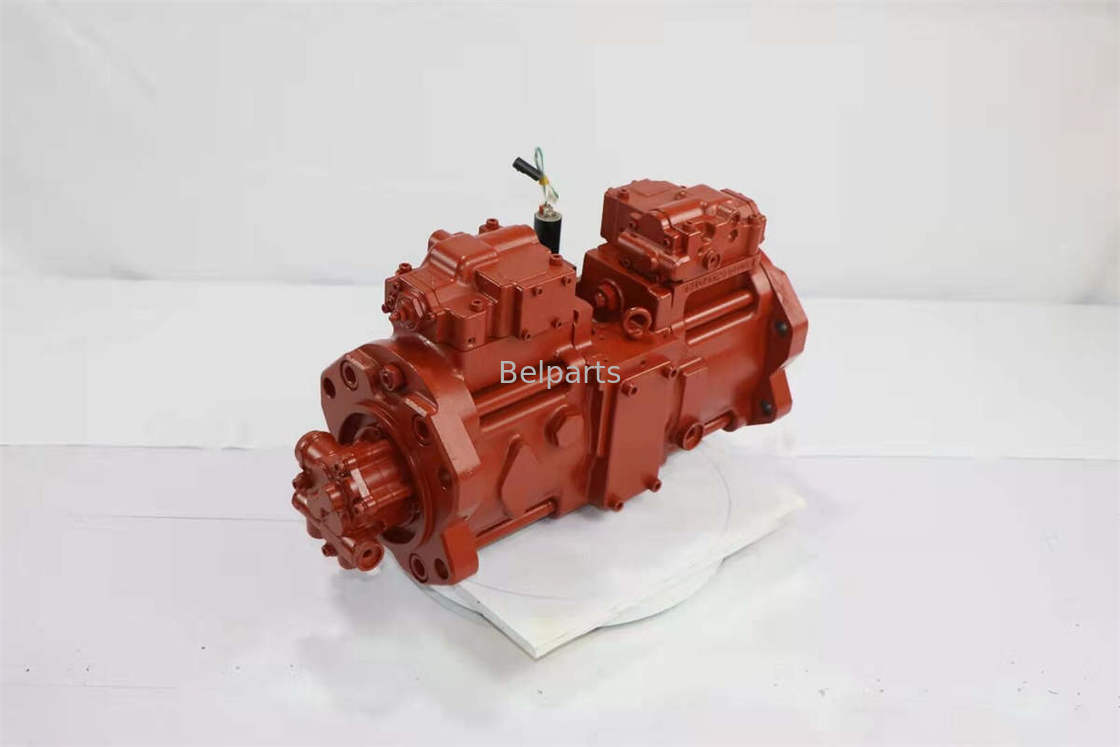

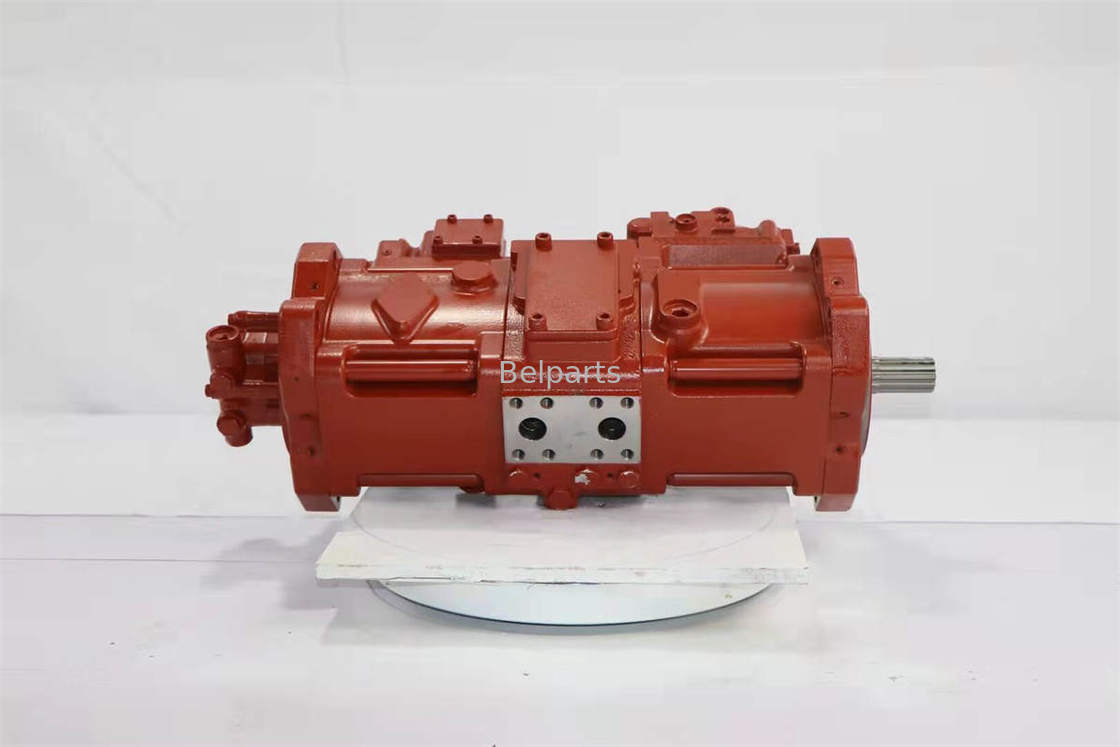

| Part Name | Hydraulic Main Pump |
| Model | R210LC-9 |
| Part Number | K3V112DTP-9C14 31Q6-10100 |
| Warranty | 3-12 months |
| Payment Term | T/T, Trade Assurance, Paypal and etc. |
| Brand | Hitachi or as required |
| # | Part No | Part Name | Qty. | Price Request |
|---|---|---|---|---|
| * | 31Q6-10100 | MAIN PUMP | ||
| *-1,*-2,*-3,*-4 | 1 | |||
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| NS141 | XJBN-00067 | BLOCK-CYLINDER | 2 | |
| NS151 | XJBN-01032 | PISTON | 18 | |
| NS152 | XJBN-01214 | SHOE | 18 | |
| 153 | XJBN-00945 | PLATE-SET | 2 | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | 2 | |
| 157 | XJBN-00084 | SPRING-CYLINDER | 18 | |
| 211 | XJBN-00085 | PLATE-SHOE | 2 | |
| NS212 | XJBN-00780 | PLATE-SWASH | 2 | |
| S214 | XJBN-00071 | BUSHING-TILTING | 2 | |
| 251 | XJBN-00779 | SUPPORT | 2 | |
| 312 | XJBN-00776 | COVER-VALVE | 1 | |
| NS313 | XJBN-01035 | PLATE-VALVE(R) | 1 | |
| NS314 | XJBN-01036 | PLATE-VALVE(L) | 1 | |
| 316 | XJBN-00690 | COVER | 1 | |
| 406 | XJBN-00355 | SCREW-HEX SOC HD | 8 | |
| 409 | XJBN-00696 | SCREW-HEX | 2 | |
| 410 | XJBN-00775 | SCREW-HEX | 12 | |
| 412 | XJBN-00774 | SCREW-HEX | 1 | |
| 467 | XJBN-00265 | PLUG | 2 | |
| 491 | XJBN-00234 | PLUG | 9 | |
| S531 | XJBN-00771 | PIN-TILTING | 2 | |
| 532 | XJBN-00770 | PISTON-SERVO | 2 | |
| 534 | XJBN-01124 | STOPPER(L) | 2 | |
| 535 | XJBN-00093 | STOPPER(S) | 2 | |
| 536 | XJBN-00768 | COVER-SERVO | 2 | |
| NS548 | XJBN-00360 | PIN-FEED BACK | 2 | |
| 703 | XJBN-00915 | O-RING | 2 | |
| 709 | XJBN-00387 | O-RING | 1 | |
| 725 | XJBN-00045 | O-RING | 2 | |
| 732 | XJBN-00904 | O-RING | 2 | |
| 752 | XJBN-00763 | PACKING-SEAT | 1 | |
| 789 | XJBN-00099 | RING-BACK UP | 2 | |
| 793 | XJBN-00761 | RING-BACK UP | 2 | |
| 806 | XJBN-00101 | NUT-HEX | 2 | |
| 807 | XJBN-00760 | NUT | 2 | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | 2 | |
| 886 | XJBN-00054 | PIN-SPRING | 2 | |
| 888 | XJBN-00712 | PIN | 1 | |
| 953 | XJBN-00757 | SCREW-SET | 2 | |
| 954 | XJBN-00392 | SCREW-SET | 2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE | SEE 4030 | 2 |
