สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Belparts
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
SK450-8 SK460-8 SK480-8
| Application | Excavator |
|---|---|

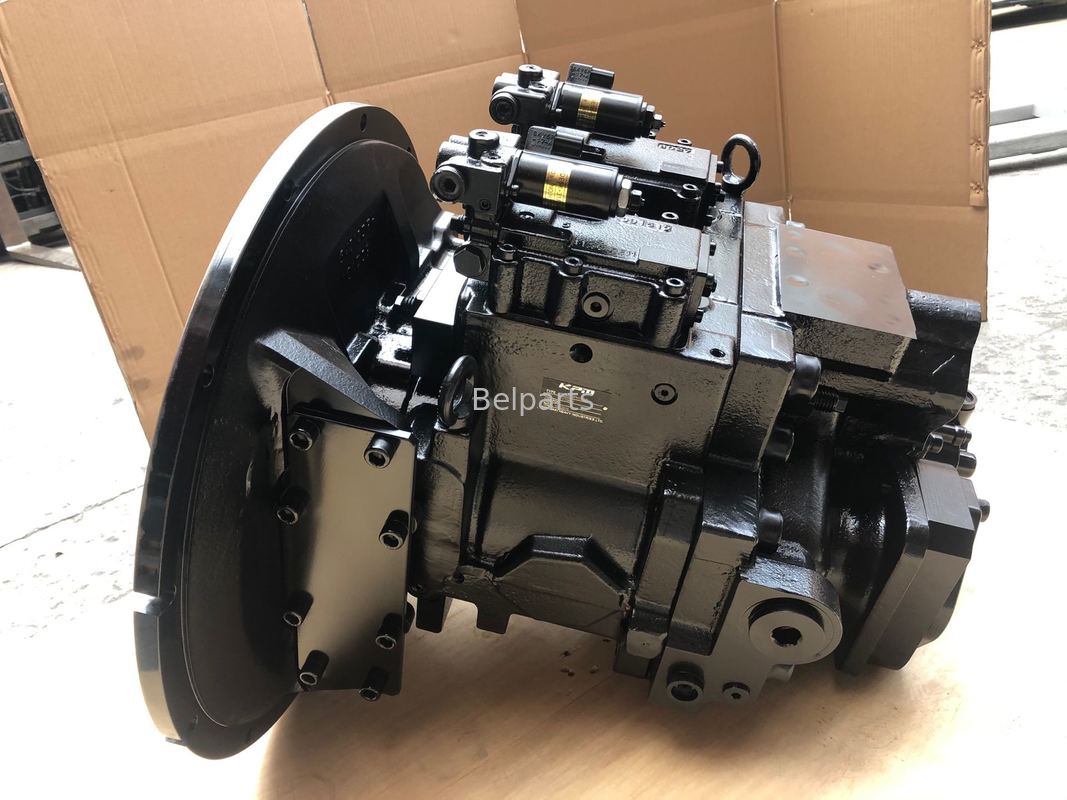

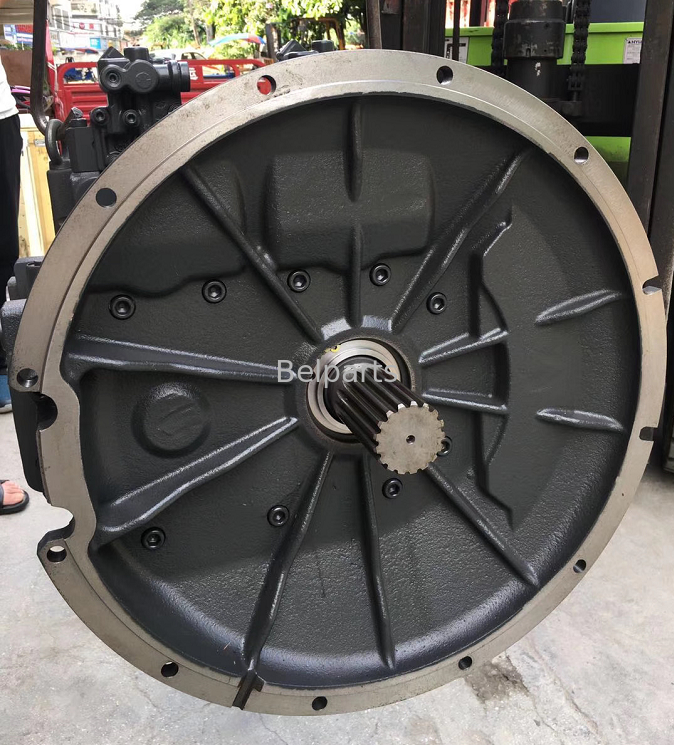

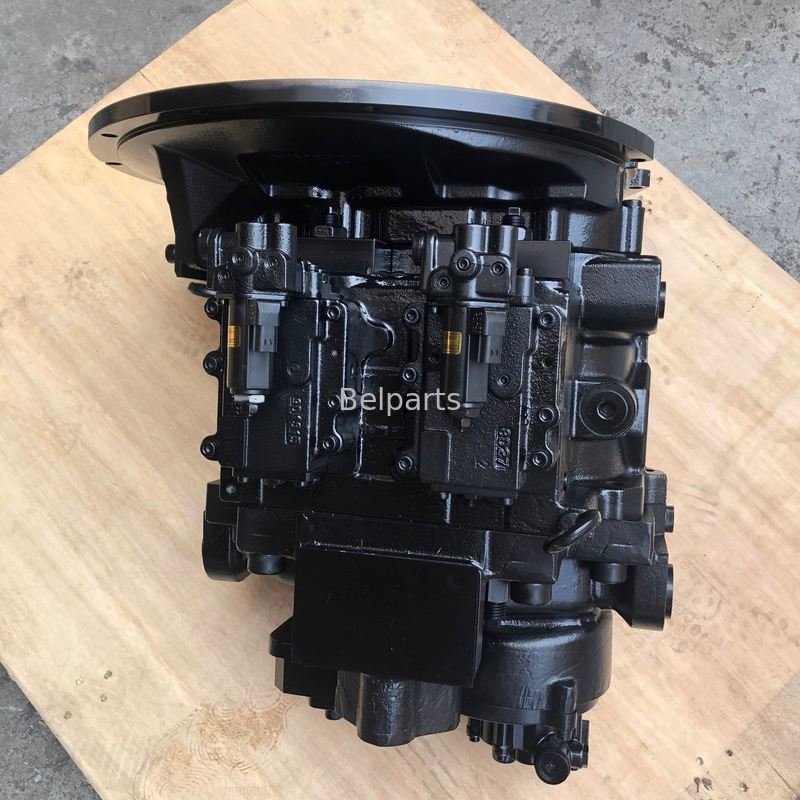

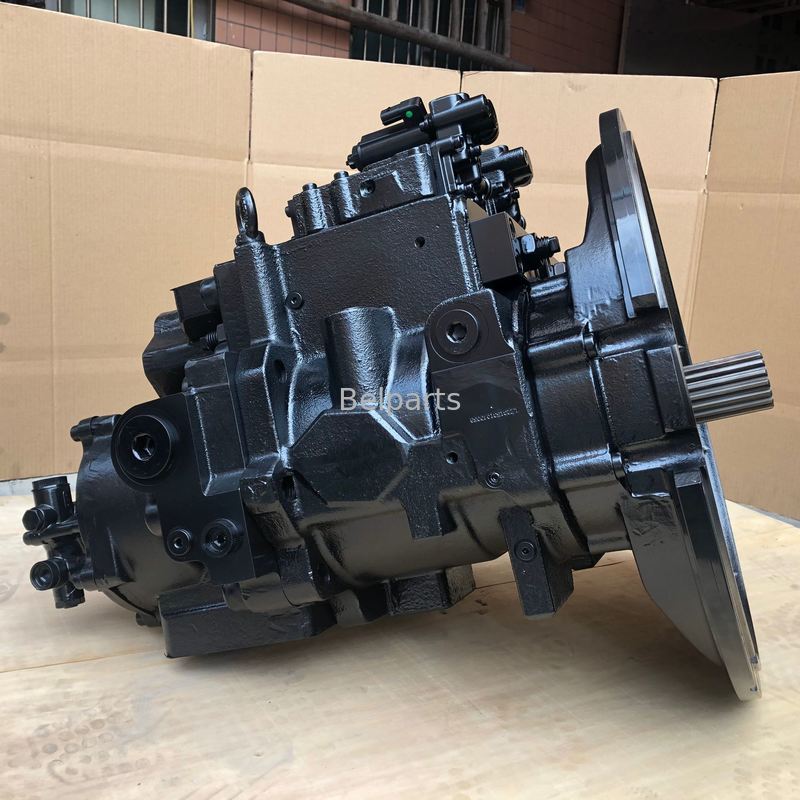

| Part name | Hydraulic Main pump |
| Machine model | SK450-8 SK460-8 SK480-8 |
| Type | K5V212DPH1N3R-0E81-V K5V212 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Made in China |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and et |
| Category | Construction Machinery Part |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| * | 2437U390F1 | [1] | PUMP | KOB PUMP AS5Y Superseded by part number:2437U486F1 |
| 1. | 2480U323F1 | [1] | CONTROL AS5Y | |
| 2. | 2416R481F1 | [1] | HANGER | KOB |
| 3. | 24100R232F1 | [2] | ROTARY DIVIDER | KOB |
| 4. | 2414R430F1 | [1] | COVER ASSY | |
| 5. | 2410R335F1 | [1] | CASE | KOB |
| 5-1. | N5 | [1] | NOT 5OLD SEPARAT | CON CASE |
| 5-2. | ZR26X06200 | [1] | SNAP RING | KOB |
| 5-3. | NSS | [1] | NOT 5OLD SEPARAT | CON SEAL,OIL |
| 5-4. | 2410R33554 | [1] | O-RING | KOB |
| 6. | 2437U386F1 | [1] | PUMP | HIT |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CON SHAFT |
| 3. | 2437U39058 | [1] | CONTACT PLATE | KOB |
| 9. | NSS | [1] | NOT 5OLD SEPARAT | CON BEARING |
| 10. | 2414R26853 | [2] | PIN | |
| 11. | 2437U390511 | [1] | SHIM | KOB SHIM |
| 12. | ZR16X02800 | [1] | SNAP RING | KOB |
| 13. | 2437U390513 | [1] | PLUG | |
| 14. | ZD12P01100 | [1] | O-RING | KOB ID 10.8mmxOD 13.2mm |
| 15. | [1] | NOT SOLD SEPARAT | CON |
