สถานที่กำเนิด:
สถานที่เดิม
ชื่อแบรนด์:
Belparts
หมายเลขรุ่น:
E324D E325C E325D E326D E329D
| Application | Excavator |

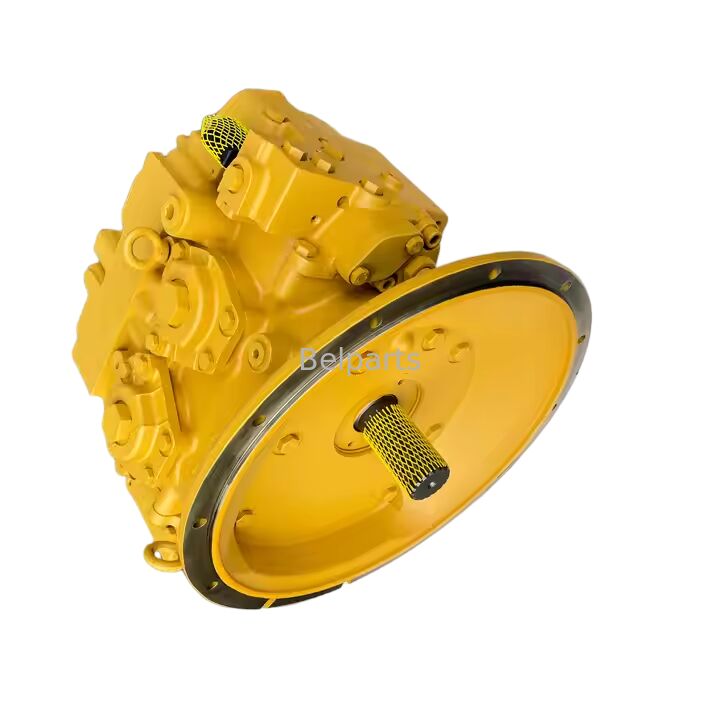

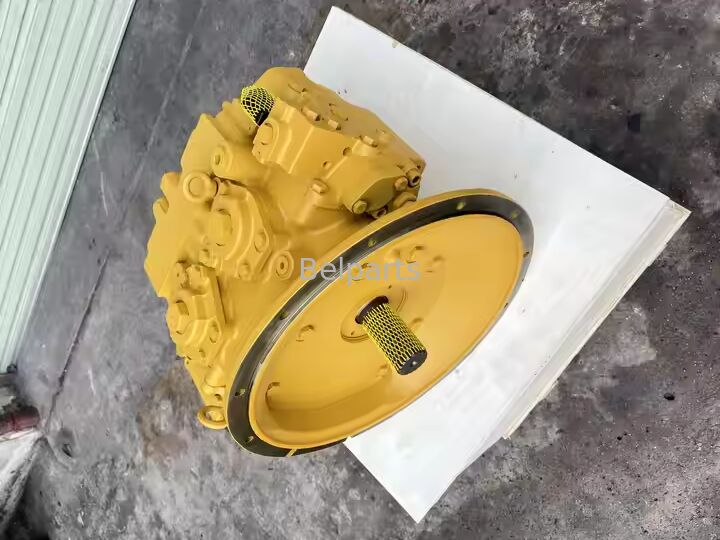

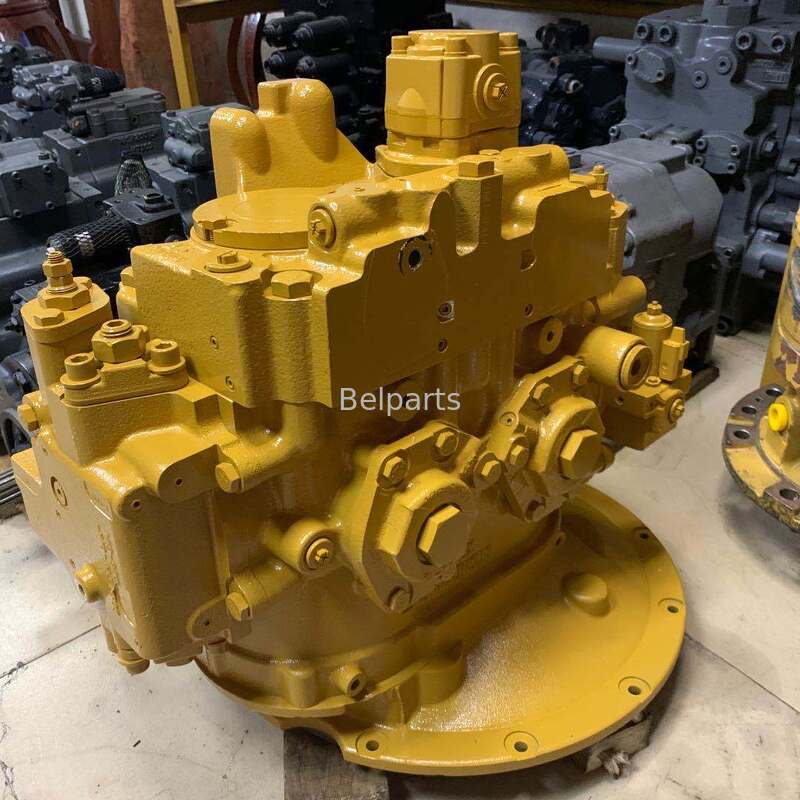

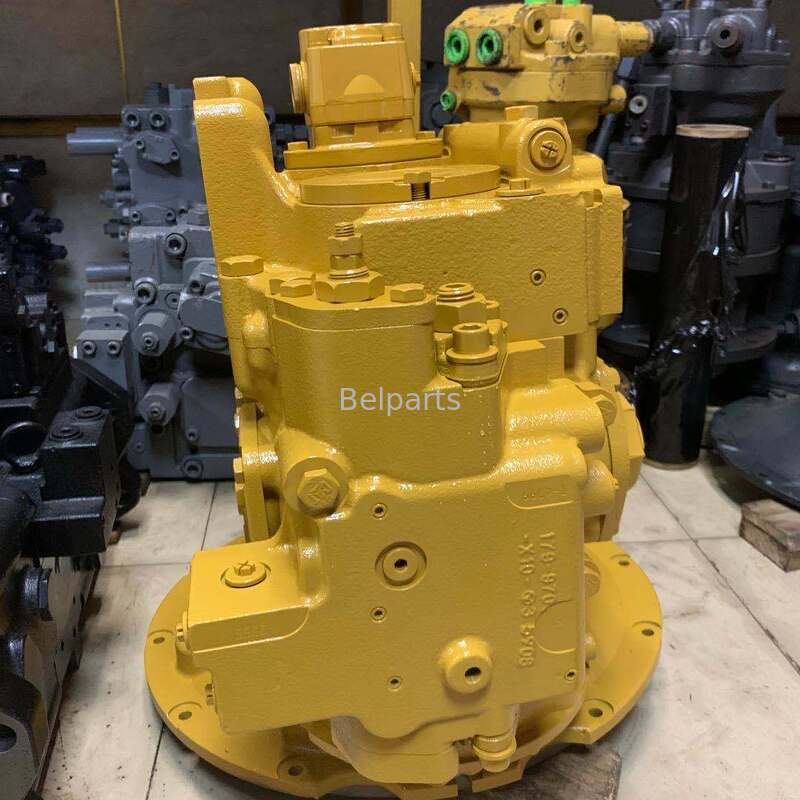

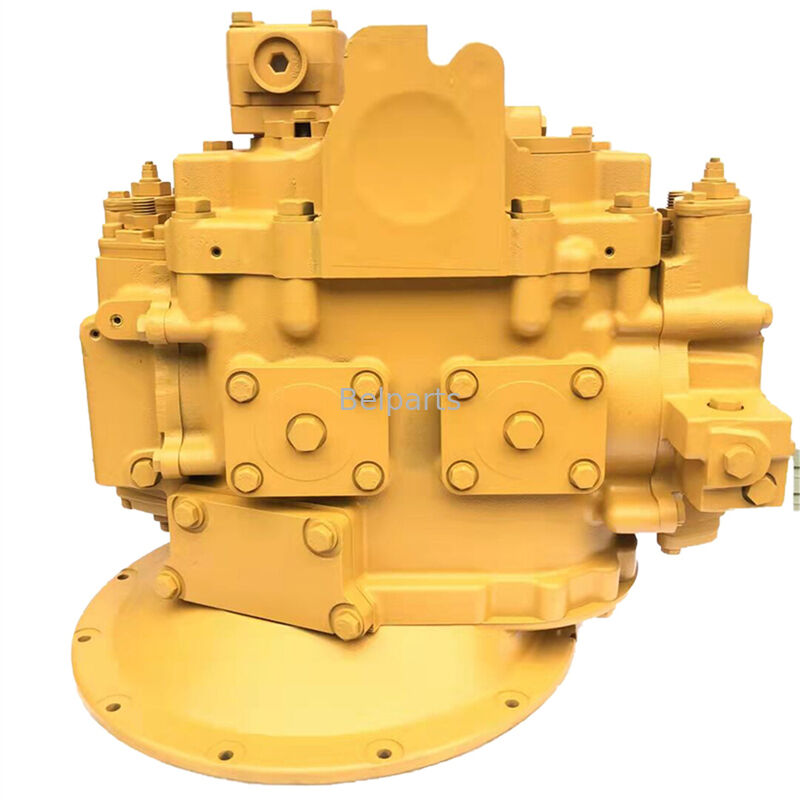

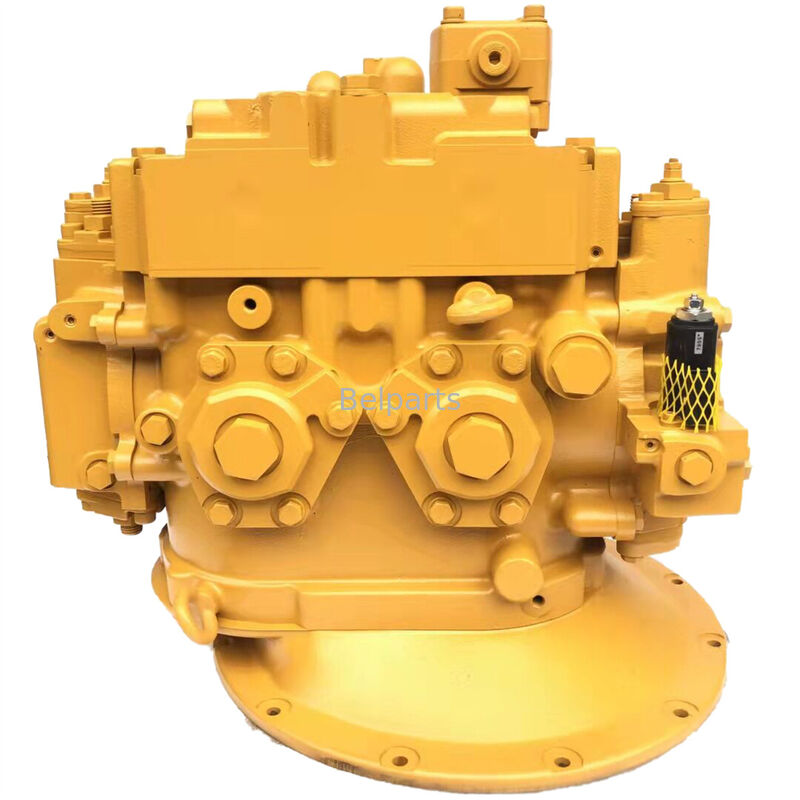

| Part Name | Hydraulic Piston Pump |
| Model |
324D 325C 325D 326D 329D 324DL 325CL 325DL 326DL 329DL |
| Type | SBS140 |
| Part Number |
272-6957 200-3343 244-8477 200-3414 244-8479 233-1115 272-6959 |
| Warranty | 6 months |
| Delivery Time | 3-7 Days |
| Shipment | Express/Freight/Sea/Train |
| Quality | Original Brand Rebuild |
| MOQ | 1 Piece |
| Payment Term | T/T, Trade Assurance, PayPal and etc |
| Category | Constr2uction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| All | 2003343 | PUMP GROUP-MAIN HYDRAULIC; -HYDRAULIC FAN, PILOT | 1 |
| 1 | 4I1022 | ORIFICE | 2 |
| 2 | 7Y4215 | SPACER | 2 |
| 3 | 0963983 | RING-RETAINING | 1 |
| 4 | 0964389 | SPRING | 18 |
| 5 | 1297853 | PLATE-CREEP | 2 |
| 6 | 1297854 | CASE | 1 |
| 7 | 1297855 | GASKET | 1 |
| 8 | 1297857 | GASKET | 1 |
| 9 | 1297863 | COVER | 1 |
| 10 | 1297921 | RING-RETAINING | 2 |
| 11 | 1297925 | SEAL-O-RING; (ID=11.89mm) | 1 |
| 12 | 1297927 | BEARING | 2 |
| 13 | 1297979 | DOWEL | 4 |
| 14 | 1505782 | COVER | 2 |
| 15 | 1733427 | GUIDE-BALL | 2 |
| 16 | 1772470 | COVER | 1 |
| 17 | 1772471 | COVER | 1 |
| 18 | 1778740 | SEAL-O-RING | 1 |
| 19 | 1799763 | FLANGE | 1 |
| 20 | 1884210 | PISTON AS | 2 |
| 21 | 1505785 | DOWEL | 4 |
| 22 | 1948325 | SET-BEARING | 2 |
| 23 | 1948371 | BARREL AS; (DRIVE) | 1 |
| 24 | 1948374 | BARREL AS; (DRIVEN) | 1 |
| 25 | 2003325 | SHAFT-DRIVEN | 1 |
| 26 | 2003333 | HEAD-PUMP | 1 |
| 27 | 2003334 | COVER | 1 |
| 28 | 2003406 | PUMP GROUP-GEAR | 1 |
| 3G5083 | SEAL; (LIP TYPE) | 1 | |
| 9T0836 | RING-RETAINING | 1 | |
| 29 | 2003413 | COUPLING | 1 |
| 30 | 2003417 | SHAFT-DRIVE | 1 |
| 31 | 2095889 | ACTUATOR GROUP-PUMP; -DRIVE | 1 |
| 32 | 2095890 | ACTUATOR GROUP-PUMP; -DRIVEN | 1 |
| 33 | 1948397 | SWASHPLATE AS | 2 |
| ---- | (EACH INCLUDES) | ||
| 1505785 | DOWEL | 1 | |
| 1733428 | BEARING-SLEEVE | 1 | |
| 1920573 | PIN-DOWEL | 2 | |
| 34 | 1772583 | BEARING | 4 |
| 35 | 9S4185 | PLUG--TO SEAL HYDRAULIC PUMP TO SUMP OF LIMIT SYSTEM | 2 |
| 36 | 1733371 | BODY | 1 |
| 37 | 1604409 | ORIFICE | 2 |
| 38 | 0941875 | PIN, ROLLER | 6 |
| 39 | 0941882 | PLUG, TAPERED | 16 |
| 40 | 0950946 | RING; (RETAINING) | 2 |
| 41 | 0957419 | SCREW - DRIVE | 4 |
| 42 | 0963944 | SEAL-O-RING | 1 |
| 43 | 1899763 | SEAL; (13.6mm OD) | 8 |
| 44 | 1904896 | PLUG | 2 |
| 45 | 1931736 | SEAL; (85.6mm OD) | 4 |
| 46 | 3K0360 | SEAL PILOT MANIFOLD ON; SEAL TO BOOM CHECK VALVE DRAIN | 2 |
| 47 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 |
| 48 | 7X2557 | BOLT; (M16X2.0X140MM) | 1 |
| 49 | 8J4645 | PLUG (FRONT 5 STEM MAIN CONTROL VALVE) | 2 |
| 50 | 8T3338 | SEAL-O-RING (ID=84.40mm) | 2 |
| 51 | 8T4136 | CAPSCREW; (HEX HD) (M10 X 1.50 X 25L GR 10.9) | 20 |
| 52 | 8T4139 | CAPSCREW; (HEX HD) (M12 X 1.75 X 30L GR 10.9) | 10 |
| 53 | 8T4140 | BOLT-PLT; (M16 X 2.0 X 60) | 4 |
| 54 | 8T4175 | BOLT; (M16X2X90-MM) | 2 |
| 55 | 8T4176 | BOLT-PLT; (M12 X 1.75 X 90) | 2 |
| 56 | 8T4192 | CAPSCREW; (HEX HD) (M12 X 1.75 X 25, GR10.9, Z) | 10 |
| 57 | 8T4196 | CAPSCREW; (HEX HD) (M10 X1.5 X 35, GR10.9, Z) | 2 |
| ---- | |||
| ---- | AVAILABLE REPAIR KIT(S): | ||
| 2042792 | KIT-SEAL; (GEAR PUMP) | 1 | |
| ---- | KIT MARKED J AVAILABLE FOR PART MARKED J | ||
| ---- | METRIC PART |
Belparts operates a large workshop dedicated to excavator parts production, covering all processes from material cutting, welding, heat treating, assembling, debugging, painting, testing - with every part thoroughly inspected before leaving the factory.
