สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Belparts
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
บ็อบแคท E26
| Application | Excavator |
|---|---|

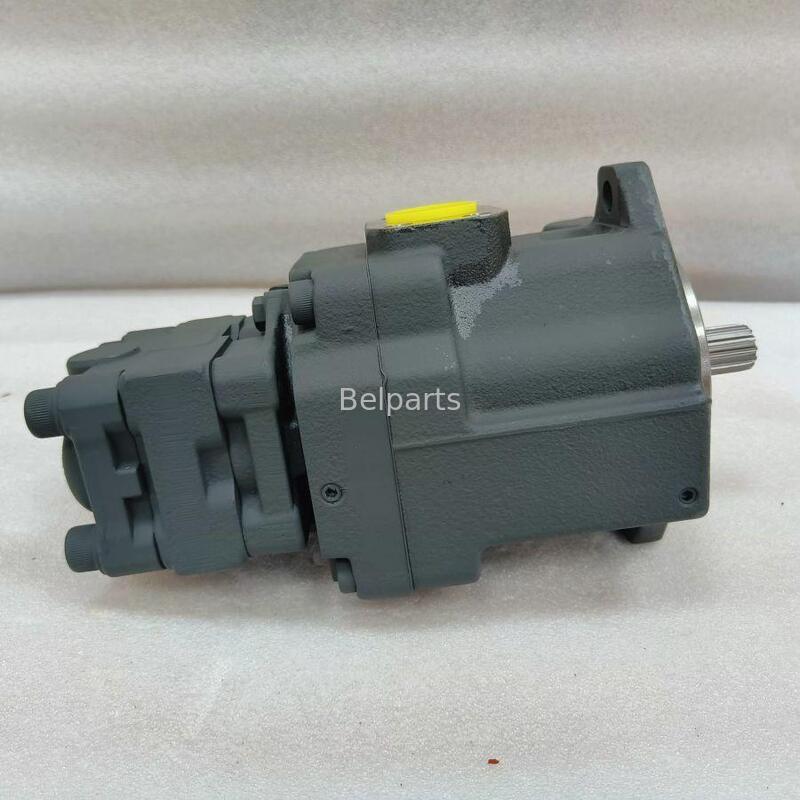

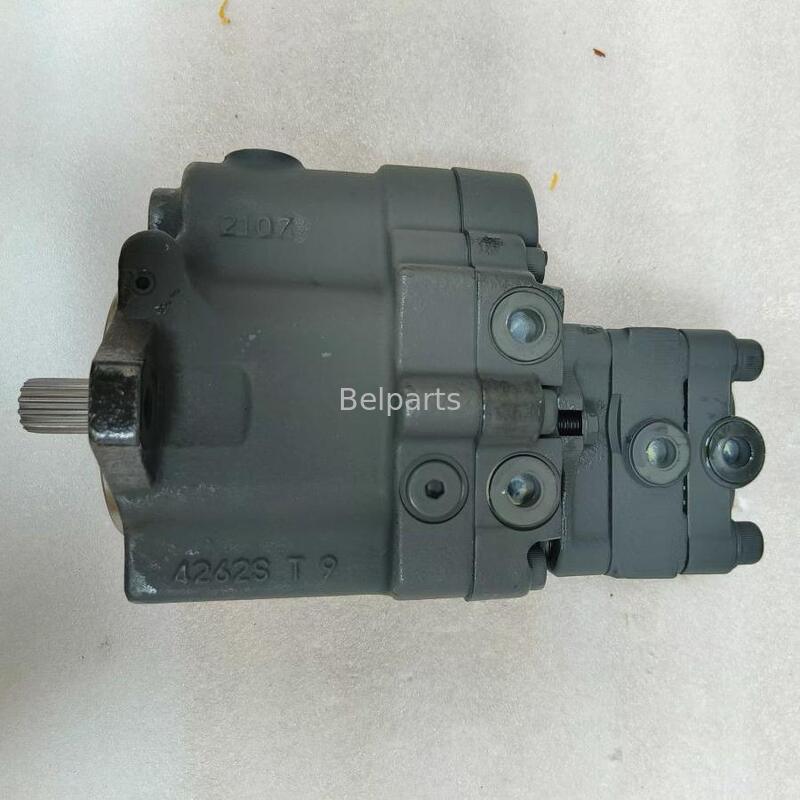

| Part name | Hydraulic Piston pump |
| Model | BOBCAT E26 |
| Type | PVD-0B-24P-6G3-4191A |
| Part Number | 7209326 |
| Warranty | 12 months |
| Delivery time | 3-7 Days |
| Shipment | Express/freight/sea/train |
| Quality | Original Brand New |
| MOQ | 1 Piece |
| Payment term | T/T, Trade Assurance, Paypal and etc |
| Category | Construction Machinery Part |
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 7209326 | PUMP HYDRAULIC PISTON; Ref. 2-51 | 1 |
| 2 | ---- | HOUSING; NSS | 1 |
| 3 | ---- | SHAFT; NSS | 1 |
| 4 | ---- | BARREL, CYLINDER; NSS | 1 |
| 5 | ---- | PLATE, VALVE; NSS | 1 |
| 6 | ---- | PISTON; NSS | 10 |
| 7 | ---- | Shoe; NSS | 10 |
| 8 | ---- | HOLDER, SHOE; NSS | 1 |
| 9 | ---- | HOLDER, BARREL; NSS | 1 |
| 10 | ---- | SWASHPLATE; NSS | 1 |
| 11 | ---- | NEEDLE; NSS | 3 |
| 12 | ---- | BALL; NSS | 2 |
| 13 | ---- | GASKET; NSS | 1 |
| 14 | ---- | SPRING; NSS | 1 |
| 15 | ---- | SPRING; NSS | 1 |
| 16 | ---- | HOUSING; NSS | 1 |
| 17 | ---- | O - RING; NSS | 1 |
| 18 | ---- | HOLDER, SPRING; NSS | 1 |
| 19 | ---- | GUIDE, SPRING; NSS | 1 |
| 20 | ---- | PIN; NSS | 1 |
| 21 | ---- | PIN; NSS | 1 |
| 22 | ---- | O - RING; NSS | 1 |
| 23 | ---- | WASHER; NSS | 1 |
| 24 | ---- | RETAINER; NSS | 2 |
| 25 | ---- | PIN, STOPPER; NSS | 1 |
| 26 | ---- | PIN, STOPPER; NSS | 1 |
| 27 | ---- | PIN; NSS | 1 |
| 28 | ---- | WASHER; NSS | 2 |
| 29 | ---- | O - RING; NSS | 1 |
| 30 | ---- | BEARING, BALL; NSS | 1 |
| 31 | ---- | BEARING, NEEDLE; NSS | 1 |
| 32 | ---- | SEAL, OIL; NSS | 1 |
| 33 | ---- | SPRING, DISH; NSS | 4 |
| 34 | ---- | RING, SNAP; NSS | 1 |
| 35 | ---- | RING, SNAP; NSS | 1 |
| 36 | ---- | RING, SNAP; NSS | 1 |
| 37 | ---- | SCREW; NSS | 2 |
| 38 | ---- | COLLAR; NSS | 1 |
| 39 | ---- | O - RING; NSS | 1 |
| 40 | ---- | O - RING; NSS | 2 |
| 41 | ---- | COUPLING; NSS | 1 |
| 42 | ---- | PLUG; NSS | 1 |
| 43 | ---- | O - RING; NSS | 1 |
| 44 | ---- | SCREW; NSS | 5 |
| 45 | 7023324 | PUMP GEAR | 1 |
| 46 | ---- | WASHER; NSS | 1 |
| 47 | ---- | NUT; NSS | 1 |
| 48 | ---- | SCREW; NSS | 1 |
| 49 | ---- | PLUG; NSS | 5 |
| 50 | ---- | PIN, SPRING; NSS | 1 |
| 51 | ---- | PLUG; NSS | 1 |
| 52 | 7023323 | KIT, ROTARY GROUP | 1 |
| 53 | 6688091 | KIT SEAL; Ref. 13, 17, 22, 29, 32, 39, 40, 43, 46 | 1 |
Belparts have a large workshop for excavator parts producing, from material cutting, welding, heating treating, assembling, debugging, painting, testing, every part we will confirm before leaving the factory.
