สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
Belparts
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
SK200-8
|
Application
|
Excavator
|
|
Part name
|

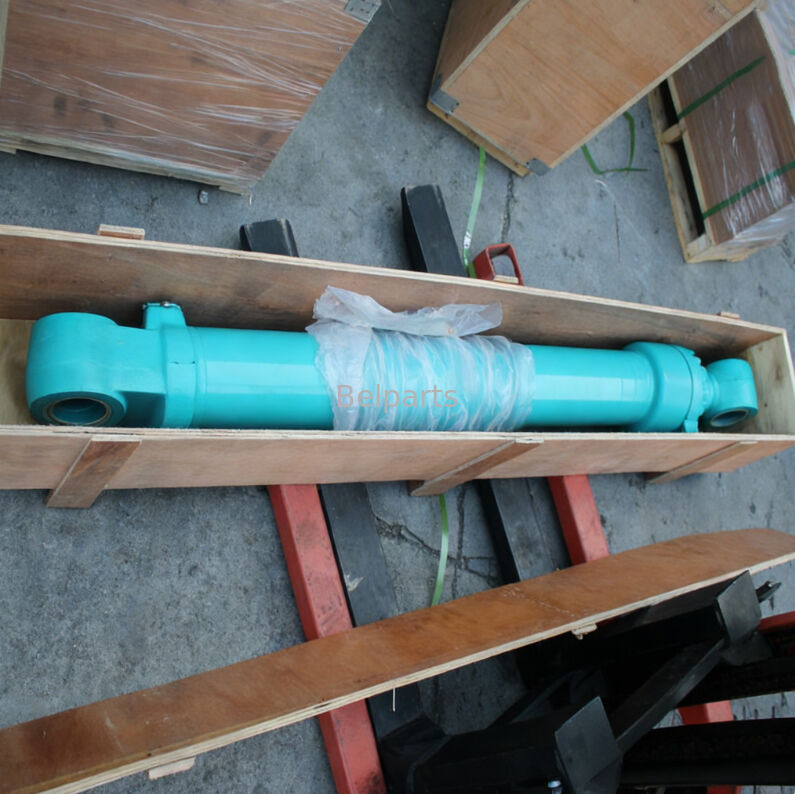

Hydraulic Bucket Cylinder
|
|
Suitable for
|
SK200-8
|
|
Part number
|
YN01V00175F2 YN01V00153F2
|
|
Warranty
|
12 months
|
|
Delivery time
|
3-7 Days
|
|
Shipment
|
Express/freight/sea/train
|
|
Quality
|
Aftermarket High Quality
|
|
MOQ
|
1 Piece
|
|
Payment term
|
T/T, Trade Assurance, Paypal and et
|
| # | Part No. | Description | Qty |
|---|---|---|---|
| . | YN01V00105S003 | CYLINDER HEAD | 1 |
| . | YN01V00175F1C | CORE-HYD CYLINDER; Return Number | 1 |
| . | YN01V00175F1R | REMAN-HYD CYLINDER; 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 - | 1 |
| . | YN01V00175R100 | SEAL; Repair Rod Side | 1 |
| . | YN01V00175R200 | SEAL; Repair Piston Side | 1 |
| . | YN01V00175R300 | SEAL; Repair All (Rod + Piston) | 1 |
| . | YN01V00175R400 | SEAL; Repair Consists Of Ref. 1x1, 26x2, 27x2 (For F1 ONLY) | 1 |
| . | YN01V00175F1 | CYLINDER,Double Acting, 95mm Rod, 1558mm Stroke; Assy, Arm | 1 |
| . | YN01V00175F2 | CYLINDER; Assy, Arm | 1 |
| 1 | ---- | NOT SOLD SEPARAT; Tube, Cylinder (For F1 ONLY) | 1 |
| 2 | ---- | NOT SOLD SEPARAT; Rod, Piston (For F1 ONLY) | 1 |
| 4 | 2438U1018S4 | BUSHING | 1 |
| 5 | 2438U776S5 | SNAP RING; Retaining | 1 |
| 6 | YN01V00175S006 | RING; Buffer | 1 |
| 7 | YN01V00175S007 | RING; U | 1 |
| 8 | YN01V00105S008 | BACK-UP RING | 1 |
| 9 | 2438U776S9 | RING; Wiper | 1 |
| 10 | ZD12G13000 | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | 1 |
| 11 | LQ01V00001S011 | RING; Back Up | 1 |
| 12 | ZS23C18080 | CAPSCREW,Hex Socket Head, M18 x 80mm; SCREW Cap | 12 |
| 13 | YN01V00175S013 | BEARING; Cushion | 1 |
| 14 | YN01V00175S014 | SEAL; Cushion | 1 |
| 15 | YN01V00175S015 | PISTON | 1 |
| 16 | LQ01V00001S016 | RING; Seal | 1 |
| 17 | LQ01V00001S017 | BACK-UP RING | 2 |
| 18 | YN01V00175S018 | RING; Slide | 2 |
| 19 | LQ01V00001S019 | RING; Slide | 2 |
| 20 | 2438U953S21 | SET SCREW; Set | 1 |
| 21 | 2436R624S6 | BALL | 1 |
| 22 | YN01V00175S022 | BEARING; Cushion | 1 |
| 23 | LQ01V00007S025 | SEAL; Cushion | 1 |
| 24 | 2438U1104S25 | STOP; per | 2 |
| 25 | 2438U1104S26 | RING; Retaining | 1 |
| 26 | YN01V01108P1 | BUSHING,85mm ID x 95mm OD x 54.5mm L; Bushing (For F1 ONLY) | 4 |
| 27 | 2438U1102S26 | SEAL; Dust | 4 |
| 28 | ---- | NOT SOLD SEPARAT; Tube, Cylinder (For F2 ONLY) | 1 |
| 29 | ---- | NOT SOLD SEPARAT; Rod, Piston (For F2 ONLY) | 1 |
| 30 | 2438U1104S28 | BUSHING; (For F2 ONLY) | 2 |
